[REL] Detective vision

Dre-+- · April 24, 2011

This resource add detective vision in MTA(like Batman Arkham Asilum game)

For use this resource just use night vision or infrared goggles.

I hope you like it)

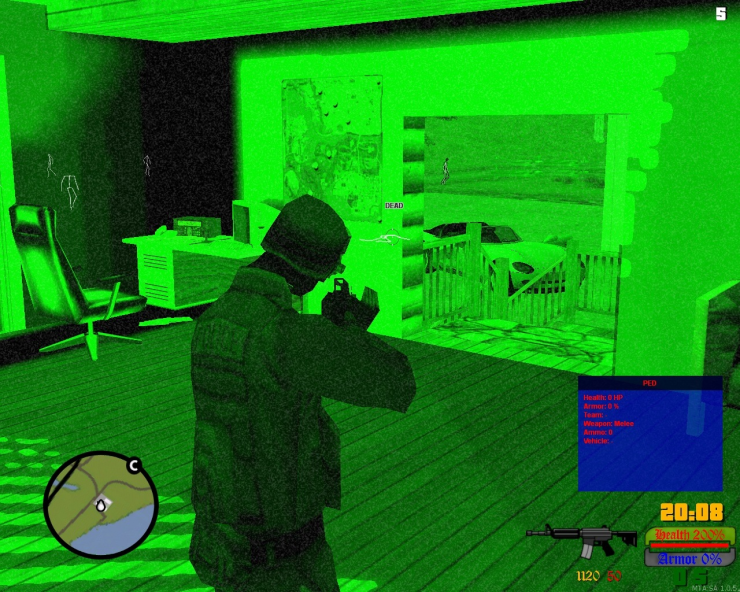

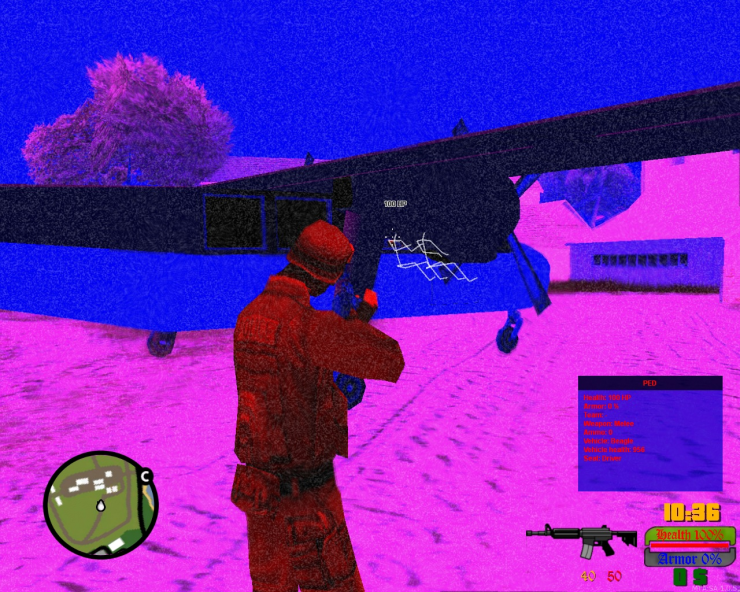

Screenshots:

https://wiki.multitheftauto.com/images/4/46/Dvision.png

For see exports go to:

Mta wiki page

Link: https://community.multitheftauto.com/index.php?p=resources&s=details&id=2074

BTW: all suggestions or bugs post in commentaries.

Edited October 17, 2011 by Guest

GodFather · April 24, 2011

Just awsome!

Castillo · April 24, 2011

Nice one, good work!

Xierra · April 25, 2011

Wow, now you feel like you're a robot or using a gadget!

I was impressed with your work dre, amazing.

Orange · April 26, 2011

I did same but without nightvision. Anyway, good work. I hope that it's more optimized that my script

Puma · May 2, 2011

Looks cool.

But how many FPS does it eat? A lot, I think.

Slothman · May 14, 2011

very very nice. I'm impressed

darkdreamingdan · May 14, 2011

Looks cool.
But how many FPS does it eat? A lot, I think.

They're 2D lines, minimal performance hit.

Great idea, nice work

Dre-+- · May 15, 2011

Thanx all)

karlis · May 15, 2011

is hud included?

Castillo · May 16, 2011

Karlis, do you mean this: https://community.multitheftauto.com/index.php?p= ... ls&id=1627 ?

Xierra · May 16, 2011

For me, I think karlis meant:

When detective vision is active, will the GTA HUD still be visible?

But yours also make sense. He may be asking for that HUD resource that was on the bottom right.

P.S: Glad to see you back karlis

Phat Looser · May 16, 2011

The heads are missing, if you use the "eye bone positions" you'd have a triangle.

I was thinking about that, too, for stealth.

karlis · May 17, 2011

Karlis, do you mean this: https://community.multitheftauto.com/index.php?p= ... ls&id=1627 ?

yep thats what i meant, thnx

_____

ty XX3, glad to see you too.

Phat Looser · June 8, 2011

May I improve it a bit?

Dre-+- · June 8, 2011

May I improve it a bit?

Ok, if you have good idea)

Phat Looser · June 8, 2011


aBoneList = {}
--right leg
aBoneList[54] = 53;
aBoneList[53] = 52;
aBoneList[52] = 51;
aBoneList[51] = 1;
--left leg
aBoneList[44] = 43;
aBoneList[43] = 42;
aBoneList[42] = 41;
aBoneList[41] = 1;
--spine
aBoneList[1] = 2;
aBoneList[2] = 3;
aBoneList[3] = 4;
--right arm
aBoneList[26] = 25;
aBoneList[25] = 24;
aBoneList[24] = 23;
aBoneList[23] = 22;
aBoneList[21] = 22;
--right arm
aBoneList[36] = 35;
aBoneList[35] = 34;
aBoneList[34] = 33;
aBoneList[33] = 32;
aBoneList[31] = 32;
--head
aBoneList[4] = 6;
aBoneList[6] = 7;
aBoneList[7] = 4;
--torso
aBoneList[32] = 41;
aBoneList[22] = 51;
--

function drawPedBones (ped)
    if isElement(ped) then
        for iFrom,iTo in pairs(aBoneList) do
            local x1,y1,z1 = getPedBonePosition(ped,iFrom);
            local x2,y2,z2 = getPedBonePosition(ped,iTo);
            if not (x1 or x2) then
                return;
            end
            local screenX1, screenY1 = getScreenFromWorldPosition ( x1,y1,z1 );
            local screenX2, screenY2 = getScreenFromWorldPosition ( x2,y2,z2 );
            local playerTeam = getPlayerTeam( ped );
            local red,green,blue = 0,0,0;
            if playerTeam then
                red,green,blue = getTeamColor ( playerTeam )
            end
            if screenX1 and screenX2 then
                dxDrawLine ( screenX1, screenY1, screenX2, screenY2, tocolor(red,green,blue,255) );
            end
        end
    end
end

The thing is, code is generated by humans, not by machines.

So keeping it readable is always a good idea.

Dre-+- · June 9, 2011


aBoneList = {}
--right leg
aBoneList[54] = 53;
aBoneList[53] = 52;
aBoneList[52] = 51;
aBoneList[51] = 1;
--left leg
aBoneList[44] = 43;
aBoneList[43] = 42;
aBoneList[42] = 41;
aBoneList[41] = 1;
--spine
aBoneList[1] = 2;
aBoneList[2] = 3;
aBoneList[3] = 4;
--right arm
aBoneList[26] = 25;
aBoneList[25] = 24;
aBoneList[24] = 23;
aBoneList[23] = 22;
aBoneList[21] = 22;
--right arm
aBoneList[36] = 35;
aBoneList[35] = 34;
aBoneList[34] = 33;
aBoneList[33] = 32;
aBoneList[31] = 32;
--head
aBoneList[4] = 6;
aBoneList[6] = 7;
aBoneList[7] = 4;
--torso
aBoneList[32] = 41;
aBoneList[22] = 51;
--

function drawPedBones (ped)
    if isElement(ped) then
        for iFrom,iTo in pairs(aBoneList) do
            local x1,y1,z1 = getPedBonePosition(ped,iFrom);
            local x2,y2,z2 = getPedBonePosition(ped,iTo);
            if not (x1 or x2) then
                return;
            end
            local screenX1, screenY1 = getScreenFromWorldPosition ( x1,y1,z1 );
            local screenX2, screenY2 = getScreenFromWorldPosition ( x2,y2,z2 );
            local playerTeam = getPlayerTeam( ped );
            local red,green,blue = 0,0,0;
            if playerTeam then
                red,green,blue = getTeamColor ( playerTeam )
            end
            if screenX1 and screenX2 then
                dxDrawLine ( screenX1, screenY1, screenX2, screenY2, tocolor(red,green,blue,255) );
            end
        end
    end
end

The thing is, code is generated by humans, not by machines.

So keeping it readable is always a good idea.

Thanks, mate, now its really looks more better)

BTW: Do you have MTA Community profile, for i add you in creators?

Castillo · June 9, 2011

I think this is his profile: https://community.multitheftauto.com/index.php?p=profile&id=33540

Phat Looser · June 9, 2011


aBoneList = {}
--right leg
aBoneList[54] = 53;
aBoneList[53] = 52;
aBoneList[52] = 51;
aBoneList[51] = 1;
--left leg
aBoneList[44] = 43;
aBoneList[43] = 42;
aBoneList[42] = 41;
aBoneList[41] = 1;
--spine
aBoneList[1] = 2;
aBoneList[2] = 3;
aBoneList[3] = 4;
--right arm
aBoneList[26] = 25;
aBoneList[25] = 24;
aBoneList[24] = 23;
aBoneList[23] = 22;
aBoneList[21] = 22;
--right arm
aBoneList[36] = 35;
aBoneList[35] = 34;
aBoneList[34] = 33;
aBoneList[33] = 32;
aBoneList[31] = 32;
--head
aBoneList[4] = 6;
aBoneList[6] = 7;
aBoneList[7] = 4;
--torso
aBoneList[32] = 41;
aBoneList[22] = 51;
--

function drawPedBones (ped)
    if isElement(ped) then
        for iFrom,iTo in pairs(aBoneList) do
            local x1,y1,z1 = getPedBonePosition(ped,iFrom);
            local x2,y2,z2 = getPedBonePosition(ped,iTo);
            if not (x1 or x2) then
                return;
            end
            local screenX1, screenY1 = getScreenFromWorldPosition ( x1,y1,z1 );
            local screenX2, screenY2 = getScreenFromWorldPosition ( x2,y2,z2 );
            local playerTeam = getPlayerTeam( ped );
            local red,green,blue = 0,0,0;
            if playerTeam then
                red,green,blue = getTeamColor ( playerTeam )
            end
            if screenX1 and screenX2 then
                dxDrawLine ( screenX1, screenY1, screenX2, screenY2, tocolor(red,green,blue,255) );
            end
        end
    end
end

The thing is, code is generated by humans, not by machines.

So keeping it readable is always a good idea.

Thanks, mate, now its really looks more better)

BTW: Do you have MTA Community profile, for i add you in creators?

Yes, like Solid said.

But I suffer from the "lonewolf" disease(just like any other scripter) which makes you stop working together with other people before you even started talking to them

Also, did your script detect that bones were outside the screen?

Always check those nil values.

Dre-+- · June 10, 2011


aBoneList = {}
--right leg
aBoneList[54] = 53;
aBoneList[53] = 52;
aBoneList[52] = 51;
aBoneList[51] = 1;
--left leg
aBoneList[44] = 43;
aBoneList[43] = 42;
aBoneList[42] = 41;
aBoneList[41] = 1;
--spine
aBoneList[1] = 2;
aBoneList[2] = 3;
aBoneList[3] = 4;
--right arm
aBoneList[26] = 25;
aBoneList[25] = 24;
aBoneList[24] = 23;
aBoneList[23] = 22;
aBoneList[21] = 22;
--right arm
aBoneList[36] = 35;
aBoneList[35] = 34;
aBoneList[34] = 33;
aBoneList[33] = 32;
aBoneList[31] = 32;
--head
aBoneList[4] = 6;
aBoneList[6] = 7;
aBoneList[7] = 4;
--torso
aBoneList[32] = 41;
aBoneList[22] = 51;
--

function drawPedBones (ped)
    if isElement(ped) then
        for iFrom,iTo in pairs(aBoneList) do
            local x1,y1,z1 = getPedBonePosition(ped,iFrom);
            local x2,y2,z2 = getPedBonePosition(ped,iTo);
            if not (x1 or x2) then
                return;
            end
            local screenX1, screenY1 = getScreenFromWorldPosition ( x1,y1,z1 );
            local screenX2, screenY2 = getScreenFromWorldPosition ( x2,y2,z2 );
            local playerTeam = getPlayerTeam( ped );
            local red,green,blue = 0,0,0;
            if playerTeam then
                red,green,blue = getTeamColor ( playerTeam )
            end
            if screenX1 and screenX2 then
                dxDrawLine ( screenX1, screenY1, screenX2, screenY2, tocolor(red,green,blue,255) );
            end
        end
    end
end

The thing is, code is generated by humans, not by machines.

So keeping it readable is always a good idea.

Thanks, mate, now its really looks more better)

BTW: Do you have MTA Community profile, for i add you in creators?

Yes, like Solid said.

But I suffer from the "lonewolf" disease(just like any other scripter) which makes you stop working together with other people before you even started talking to them

Also, did your script detect that bones were outside the screen?

Always check those nil values.

Ok, added in special thanks)

will briggs · June 13, 2011

Dude, Awesome! Really well done...

Phat Looser · June 14, 2011

Naw, thats what scripts should be like

Phat Looser · June 15, 2011


aBoneList = {}
--right leg
aBoneList[54] = 53;
aBoneList[53] = 52;
aBoneList[52] = 51;
aBoneList[51] = 1;
--left leg
aBoneList[44] = 43;
aBoneList[43] = 42;
aBoneList[42] = 41;
aBoneList[41] = 1;
--spine
aBoneList[1] = 2;
aBoneList[2] = 3;
aBoneList[3] = 4;
--right arm
aBoneList[26] = 25;
aBoneList[25] = 24;
aBoneList[24] = 23;
aBoneList[23] = 22;
aBoneList[21] = 22;
--right arm
aBoneList[36] = 35;
aBoneList[35] = 34;
aBoneList[34] = 33;
aBoneList[33] = 32;
aBoneList[31] = 32;
--head
aBoneList[4] = 6;
aBoneList[6] = 7;
aBoneList[7] = 4;
--torso
aBoneList[32] = 41;
aBoneList[22] = 51;
--


aBoneFarList = {}
--right leg
aBoneFarList [54] = 51;
--left leg
aBoneFarList [44] = 41;
--spine
aBoneFarList [1] = 4;
--right arm
aBoneFarList [26] = 22;
--right arm
aBoneFarList [36] = 32;
--head
aBoneFarList [6] = 7;
--torso
aBoneFarList [32] = 41;
aBoneFarList [22] = 51;
--
function drawPedBones (ped)
    local aList = {};
    if isElement(ped) then
        local x,y,z = getCameraMatrix();
        local px,py,pz = getElementPosition(ped);
        local fDistance = getDistanceBetweenPoints3D(x,y,z,px,py,pz);
        if fDistance < 50 then
            aList = aBoneList;
        elseif fDistance < 300 then
            aList = aBoneFarList;
        end
        for iFrom,iTo in pairs(aList) do
            local x1,y1,z1 = getPedBonePosition(ped,iFrom);
            local x2,y2,z2 = getPedBonePosition(ped,iTo);
            if not (x1 or x2) then
                return;
            end
            local screenX1, screenY1 = getScreenFromWorldPosition ( x1,y1,z1 );
            local screenX2, screenY2 = getScreenFromWorldPosition ( x2,y2,z2 );
            local playerTeam = getPlayerTeam( ped );
            local red,green,blue = 0,0,0;
            if playerTeam then
                red,green,blue = getTeamColor ( playerTeam )
            end
            if screenX1 and screenX2 then
                dxDrawLine ( screenX1, screenY1, screenX2, screenY2, tocolor(red,green,blue,255) );
            end
        end
    end
end

Uses less GFX speed - all DX funktions have the drawback that they are pushed through the pipe, which is the bottleneck of a GFX card.

Dre-+- · June 16, 2011


aBoneList = {}
--right leg
aBoneList[54] = 53;
aBoneList[53] = 52;
aBoneList[52] = 51;
aBoneList[51] = 1;
--left leg
aBoneList[44] = 43;
aBoneList[43] = 42;
aBoneList[42] = 41;
aBoneList[41] = 1;
--spine
aBoneList[1] = 2;
aBoneList[2] = 3;
aBoneList[3] = 4;
--right arm
aBoneList[26] = 25;
aBoneList[25] = 24;
aBoneList[24] = 23;
aBoneList[23] = 22;
aBoneList[21] = 22;
--right arm
aBoneList[36] = 35;
aBoneList[35] = 34;
aBoneList[34] = 33;
aBoneList[33] = 32;
aBoneList[31] = 32;
--head
aBoneList[4] = 6;
aBoneList[6] = 7;
aBoneList[7] = 4;
--torso
aBoneList[32] = 41;
aBoneList[22] = 51;
--


aBoneFarList = {}
--right leg
aBoneFarList [54] = 51;
--left leg
aBoneFarList [44] = 41;
--spine
aBoneFarList [1] = 4;
--right arm
aBoneFarList [26] = 22;
--right arm
aBoneFarList [36] = 32;
--head
aBoneFarList [6] = 7;
--torso
aBoneFarList [32] = 41;
aBoneFarList [22] = 51;
--
function drawPedBones (ped)
    local aList = {};
    if isElement(ped) then
        local x,y,z = getCameraMatrix();
        local px,py,pz = getElementPosition(ped);
        local fDistance = getDistanceBetweenPoints3D(x,y,z,px,py,pz);
        if fDistance < 50 then
            aList = aBoneList;
        elseif fDistance < 300 then
            aList = aBoneFarList;
        end
        for iFrom,iTo in pairs(aList) do
            local x1,y1,z1 = getPedBonePosition(ped,iFrom);
            local x2,y2,z2 = getPedBonePosition(ped,iTo);
            if not (x1 or x2) then
                return;
            end
            local screenX1, screenY1 = getScreenFromWorldPosition ( x1,y1,z1 );
            local screenX2, screenY2 = getScreenFromWorldPosition ( x2,y2,z2 );
            local playerTeam = getPlayerTeam" class="kw2">getPlayerTeam" class="kw2">getPlayerTeam( ped );
            local red,green,blue = 0,0,0;
            if playerTeam then
                red,green,blue = getTeamColor ( playerTeam )
            end
            if screenX1 and screenX2 then
                dxDrawLine ( screenX1, screenY1, screenX2, screenY2, tocolor(red,green,blue,255) );
            end
        end
    end
end

Uses less GFX speed - all DX funktions have the drawback that they are pushed through the pipe, which is the bottleneck of a GFX card.

I dont really understand how, but your code add more 4~6 fps, thanx)

Sign In

[REL] Detective vision

Recommended Posts

Dre-+-

GodFather

Castillo

Xierra

Orange

Puma

Slothman

darkdreamingdan

Dre-+-

karlis

Castillo

Xierra

Phat Looser

karlis

Phat Looser

Dre-+-

Phat Looser

Dre-+-

Castillo

Phat Looser

Dre-+-

will briggs

Phat Looser

Phat Looser

Dre-+-

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Browse

Activity

MTA Network

Social Media
