GUI

[StefanAlmighty]

So I'm making a teleport system GUI. I've made the GUI, but now I want to create an array and I want it to loop through my array and fill the gridlist with all the teleporter locations in the array? How would I go about doing this?

[KariiiM]

Create a table and loop the data from this table and send it to client side by trigger ,in case you created the table in client just loop it

Use

ipairs
pairs

to loop a table

[StefanAlmighty]

How would I create the table? I want it to store an ID, name and description.

[KariiiM]

How would I create the table? I want it to store an ID, name and description.

You can create a table like that

local aTable = {} --i created my table i named it aTable it's empty

local aTable = { --after creating the table i filled it with IDs.
{"id1"},
{"id2"},
{"id3"},
}

There're alot of ways to do that ,it was just a simple example to understand, You can loop like this table by using ipairs or pairs no matter in this situation

[StefanAlmighty]

My gridlist has three columns, so I made a table:


local data = {
{"1", "Los Santos", "Pershing Square, the heart of Los Santos."}
{"2", "DMV", "Department of Motor Vehicles."}
}


But now it wont work at all, not even the GUI.

[KariiiM]

Good job, but It's wrong must be like that

local data = {
{"1", "Los Santos", "Pershing Square, the heart of Los Santos."},
{"2", "DMV", "Department of Motor Vehicles."},
}

If you stuck on something post the code,

~Good luck

[StefanAlmighty]

I modified it a bit so it contains the coordinates, interior, dimension etc. Here:


local data = {                                                              -- X                Y               Z        Int  Dim  Rot
ls = {"1", "Los Santos", "Teleports you to Pershing Square, Los Santos.", 1479.9873046875, -1710.9453125, 13.36874961853,   0,  0,  0},
sf = {"2", "San Fierro", "Teleports you to Doherty, San Fierro.", -1988.5693359375, 507.0029296875, 35.171875,  0,  0,  90},
lv = {"3", "Las Venturas", "Teleports you to The Strip, Las Venturas", 1691.6801757813,     1449.1293945313,    10.765375,  0,  0,  268},
}


I tried looping through them and adding them to my gridlist but it doesn't work, here's the code:


for v, k in pairs(data) do
        gui.row = guiGridListAddRow(gui.grid)
        local a, b = gui.grid, gui.row
        guiGridListSetItemText(a, b, gui.colID, data[k][1], false, true)
        guiGridListSetItemText(a, b, gui.colValue, data[k][2], false, false)
        guiGridListSetItemText(a, b, gui.colDesc, data[k][3], false, false)
end


[KariiiM]

Make sure gui.grid is defined as guiCreateGridList function and gui.colID ,gui.colValue, gui.colDesc are the columns

local data = {                                                              -- X                Y               Z        Int  Dim  Rot
[1] = {"1", "Los Santos", "Teleports you to Pershing Square, Los Santos.", 1479.9873046875, -1710.9453125, 13.36874961853,   0,  0,  0},
[2] = {"2", "San Fierro", "Teleports you to Doherty, San Fierro.", -1988.5693359375, 507.0029296875, 35.171875,  0,  0,  90},
[3] = {"3", "Las Venturas", "Teleports you to The Strip, Las Venturas", 1691.6801757813,     1449.1293945313,    10.765375,  0,  0,  268},
}

for index, v in pairs(data) do
        local row = guiGridListAddRow(gui.grid)
        guiGridListSetItemText(gui.grid, row, gui.colID, v[1], false, true)
        guiGridListSetItemText(gui.grid, row, gui.colValue, v[2], false, false)
        guiGridListSetItemText(gui.grid, row, gui.colDesc, v[3], false, false)
end

[StefanAlmighty]

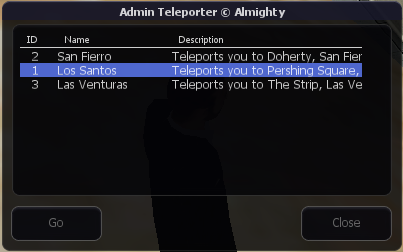

Okay all good, it's working perfectly. When the player has a row selected and they click "Go" I want it to teleport them to the location. Here's a picture of my GUI:

So if the player has Los Santos selected, I want it to teleport them to the LS coordinates in my table.

[KariiiM]

Okay all good, it's working perfectly. When the player has a row selected and they click "Go" I want it to teleport them to the location

So if the player has Los Santos selected, I want it to teleport them to the LS coordinates in my table.

You've to use

setElementPosition

try by yourself if you stuck i will help you

[StefanAlmighty]


gui.goWindow = guiCreateButton(5, 205, 91, 35, "Go", false, gui.manager)
    addEventHandler("onClientGUIClick", gui.goWindow, function ()
            if source == gui.goWindow then
                local selectedplace = guiGridListGetSelectedItem(gui.manager)
                if selectedplace == 1 -- LS
                    setElementPosition(getRootElement(), data[ls][4], data[ls][5], data[ls[6])
                    setElementRotation(getRootElement(), 0, 0, data[ls][9])
                    setElementInterior(getRootElement(), data[ls][7])
                    setElementDimension(getRootElement(), data[ls][8])
                end
            end
end, false)


I've tried but I'm not sure how to find out if the player has selected LS, SF or LV.

This doesn't work btw.

[KariiiM]

Your code is messy, post the full code and i'll fix it

[StefanAlmighty]


function openTeleportMenu(locationData)
    if locationData and type(locationData) == "table" then
        data = locationData
    end
    terminateLocationManager()
    showCursor(true)
    local w, h = 400, 250
    gui.manager = guiCreateWindow(0, 0, w, h, "Admin Teleporter © Almighty", false)
    exports.global:centerWindow(gui.manager)
    gui.grid = guiCreateGridList(10, 23, 380, 172, false, gui.manager)
    gui.colID = guiGridListAddColumn(gui.grid, "ID", 0.1)
    gui.colName = guiGridListAddColumn(gui.grid, "Name", 0.3)
    gui.colDesc = guiGridListAddColumn(gui.grid, "Description", 0.5)
    for v, k in pairs(data) do
        gui.row = guiGridListAddRow(gui.grid)
        local a, b = gui.grid, gui.row
        guiGridListSetItemText(a, b, gui.colID, data[v][1], false, true)
        guiGridListSetItemText(a, b, gui.colName, data[v][2], false, false)
        guiGridListSetItemText(a, b, gui.colDesc, data[v][3], false, false)
    end
    gui.closeWindow = guiCreateButton(299, 205, 91, 35, "Close", false, gui.manager)
    addEventHandler("onClientGUIClick", gui.closeWindow, function ()
            if source == gui.closeWindow then
                terminateLocationManager()
            end
    end, false)
    gui.goWindow = guiCreateButton(5, 205, 91, 35, "Go", false, gui.manager)
    addEventHandler("onClientGUIClick", gui.goWindow, function ()
            if source == gui.goWindow then
                local selectedplace = guiGridListGetSelectedItem(gui.manager)
                if selectedplace == 1 -- LS
                    setElementPosition(getRootElement(), data[ls][4], data[ls][5], data[ls[6])
                    setElementRotation(getRootElement(), 0, 0, data[ls][9])
                    setElementInterior(getRootElement(), data[ls][7])
                    setElementDimension(getRootElement(), data[ls][8])
                end
            end
    end, false)
end
addCommandHandler("tpmenu", openTeleportMenu, false, false)


It's on line 28 - 39.

[KariiiM]

Do you want only staff team or someone in the ACL who control it? im going to re make this code , it's really messy , you can learn from it later

[StefanAlmighty]

I want it so anybody can use it for now, and the code works fine. I'd just like to know how to find out which row is selected.

[KariiiM]

I want it so anybody can use it for now, and the code works fine. I'd just like to know how to find out which row is selected.

Yes, im making it now, 5mins and the code will be done with all features and clear !

[KariiiM]

I re-made the script from the Zero, it's without bugs and clear i just tested it , works perfectly there are two sides , server / client, copy them correctly and i hope that i helped you,

have fun scripting !

--client side

local w, h = 400, 250
local window = guiCreateWindow(0, 0, w, h, "Admin Teleporter © Almighty", false)
guiSetVisible (window, false)
guiWindowSetSizable(window,false)
local grid = guiCreateGridList(10, 23, 380, 172, false, window)
local col1 = guiGridListAddColumn(grid,"ID",0.4)
local col2 = guiGridListAddColumn(grid,"Name",0.37)
local col3 = guiGridListAddColumn(grid,"Description",0.13)
local transport = guiCreateButton(5, 205, 91, 35, "Go", false, window)
local cancel = guiCreateButton(299, 205, 91, 35, "Close", false, window)

function viewGUI (aTable)
  if ( source == getLocalPlayer() ) then
    guiSetVisible (window, true)
    showCursor (true)
    if guiGetVisible(window) then
    guiGridListClear(grid)
       for index ,val in ipairs (aTable) do
       local row = guiGridListAddRow (grid)
       guiGridListSetItemText (grid, row, col1, val[1], false, true)
       guiGridListSetItemText (grid, row, col2, val[2], false, false)
       guiGridListSetItemText (grid, row, col3, val[3], false, false)
      end
    end
  end
end
addEvent ("showGui", true)
addEventHandler ("showGui", root, viewGUI)

addEventHandler ("onClientGUIClick", root,
function ()
      if (source == cancel) then
      if guiGetVisible(window) ~= nil then
       guiSetVisible (window, false)
       showCursor(false)
       end
     elseif (source == transport) then
      local row = guiGridListGetSelectedItem(grid)
      if row and row == -1 then outputChatBox ("You must selecte the destination",getLocalPlayer(),255,0,0) return false end
      guiSetVisible(window,false)
      showCursor(false)
      triggerServerEvent("warp",getLocalPlayer(),guiGridListGetSelectedItem(grid)+1)
   end
end)

--server side:

--X, Y, Z, Int, Dim, Rot;
local data = {
[1] = {"1", "Los Santos", "Teleports you to Pershing Square, Los Santos.", 1479.9873046875, -1710.9453125, 13.36874961853,   0,  0,  0},
[2] = {"2", "San Fierro", "Teleports you to Doherty, San Fierro.", -1988.5693359375, 507.0029296875, 35.171875,  0,  0,  90},
[3] = {"3", "Las Venturas", "Teleports you to The Strip, Las Venturas", 1691.6801757813,     1449.1293945313,    10.765375,  0,  0,  268},
}

addCommandHandler("tpmenu",
function (player, commandName)
    triggerClientEvent (player,"showGui", player, data)
end)

addEvent ("warp",true)
addEventHandler ("warp",root,
function (i)
local data = data[i]
local x, y, z = data[4], data[5], data[6]
local int , dim = data[7], data[8]
fadeCamera(source, false)
setTimer(fadeCamera, 2200, 1, source, true)
setTimer(setElementPosition,2000,1,source, x, y, z)
setTimer(setElementDimension,2000,1,source, dim)
setTimer(setElementInterior,2000,1,source, int)
setCameraTarget(source, source)
end)

--meta.xml

    "KariM"  type="script" name="Transporter GUI" version="1.0" />


~Regards,

KariM

[StefanAlmighty]

I've been studying the code and I think I know where I went wrong. Although, I've tested it and it works like a charm. Thanks for that.

[KariiiM]

I've been studying the code and I think I know where I went wrong. Although, I've tested it and it works like a charm. Thanks for that.

You're welcome

[StefanAlmighty]

One more thing, I'm not sure if it's possible but I'll ask.

Is it possible to make a command (for example /addnewpos) which adds a new teleport location to the data table from in-game? I'm not sure if it's possible, but I'd like to make my teleport system completely dynamic.

[KariiiM]

One more thing, I'm not sure if it's possible but I'll ask.

Is it possible to make a command (for example /addnewpos) which adds a new teleport location to the data table from in-game? I'm not sure if it's possible, but I'd like to make my teleport system completely dynamic.

It's possible

[StefanAlmighty]

How would I do that? Is there a function which will add a row to my data table?

[KariiiM]

How would I do that? Is there a function which will add a row to my data table?

table.insert

Also you've to use this function to get the player's position when you type the cmd

getElementPosition

[StefanAlmighty]

Alright so should I use it in this format?

table.insert(data, 1, 4)

table.insert(data, 2, "Bayside")

table.insert(data, 3, "Teleports you to Bayside in Tierra Robada")

[KariiiM]

table.insert

This function is used to inserts element in table and in this situation you need to store player position what you typed in game

You can also use,

table.remove

to remove what you stored in the table
